Candy-machine

Type：	TG-50
Power:	0.75kw
Dimensions：	190011001700

Send E-mail

Consult Now

Share with:

Brief Introduction
Feature
Working principle
Technical data
Inquiry

Brief Introduction：

The small candy pouring production equipment gummy hard candy production line is free. It is a laboratory type candy pouring machine developed by our company for customers. This machine can produce a variety of high quality candy: including hard candy, gelatin and toffee. The candy produced by this machine is smooth and clear, and has a good taste. It is favored by customers.Our Factory small candy pouring production equipment soft candy hard candy production line free installation has the following characteristics: small size, compact structure; good operability; pouring volume and pouring speed easy to adjust control; signal control system, easy to adjust and operate. In the absence of a mold, the mold inspection equipment can control the machine to stop automatically; the main power of the machine comes from the air compressor, and most of the mechanical actions are performed by the cylinder, so the operating environment is safe and hygienic.

Feature：

Multi-purpose, suitable for pouring hard candy, gelatin candy, toffee, and various castable candy.
Compact structure, stable performance and convenient control.
The pouring amount can be arbitrarily selected, and the running speed can be steplessly adjusted as needed.
This machine is equipped with automatic mold tracking and detecting device, and no mold automatically stops pouring.
This machine adopts the control principle set by the program, which makes the pouring machine more stable and more accurate during the operation.
The working power of this machine is compressed air, the whole working environment is hygienic and clean, and it meets the GMP production requirements
of food hygiene.

Technical Data:

Device name

Specification stor reference

Can pour cooking pot

(Mezzanine insulation)

Includes: Gearers, motors, agitators, electric tubes, control appliances.

Volume:100L

Stirring motor power:0.55kw

Motor power:0.75kw

Electric heating power:20kw

Dimensions:1300x800x900mm

Material: Stainless steel

Can pour gelatin cooking pot

(Mezzanine insulation)

Includes: Gearers, motors, agitators, electric tubes, control appliances.

Volume:50L

Stirring motor power:0.55kw

Motor power:0.75kw

Electric heating power:18kw

Dimensions:1000x600x800mm

Material: Stainless steel

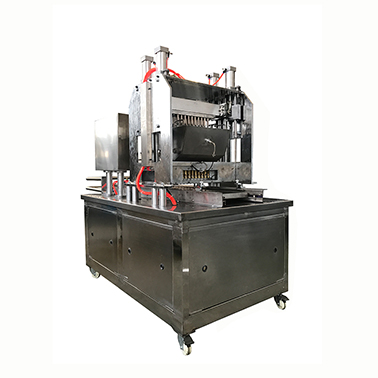

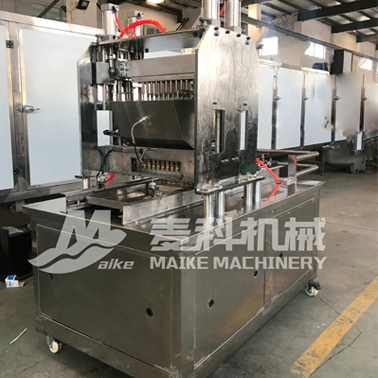

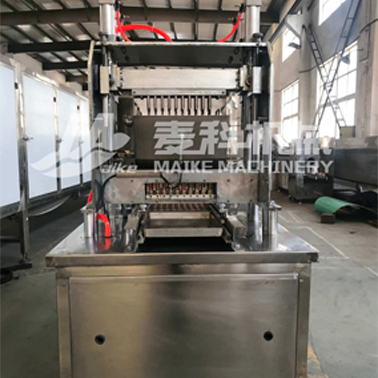

Candy Pouring Machine

(Type50)

Including:

50 years Type air pressure control pouring machine, 20-well double pouring hopper, spray distribution board, upper and lower two-color distribution board, pneumatic conveyor,PLC program control pouring.

Parameters:

Pouring power:0.75kw

Operating pressure:0.3-0.5mpa

Air consumption:0.5 m3/h

Electric power:3kw

Dimensions:1900x1100x1700

Material: Stainless steel in contact with food, rack A3 carbon steel, and stainless steel wrapped in wall panels

Template injector unit

Including:

20 years Head pneumatic , template surface , electromagnetic change to pressure valve,PLC program control.

Arguments :

Injector width:350mm Maximum output pressure:0.3mpa

Compressed air usage:0.1m3/min nozzle diameter:3mm

Cooling tunnelmachines

Including:

1 set of freezers, 1 cooler,

1 set of chain transport.

Arguments;

8th 1 set of refrigeration units,

Power 5.5kw

Cooling delivery chain 1 set,

Power: 0.75 kw,

Stainless steel for the exterior of the machine and in contact with food,

The freezer door is made of stainless steel plate with an intermediate insulation layer.

Dimensions:8000 x 850 x 2250

Air-pressure release machine

( 50 years type)

Standard cylinders, electromagnetic control change-over valves,

Tracheal. Control system

Operating pressure:0.3-0.5mpa

Gas consumption:0.6 m3/h

Power:0.55kw

Size:1500 x 1060 x 1200

Weight:180kg

Material: Stainless steel

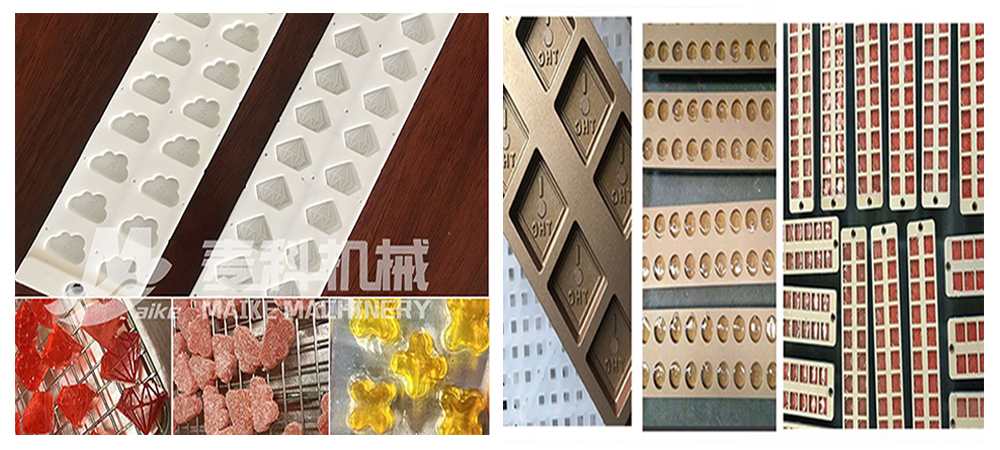

Gummy mold

Aluminum pressed, exterior Teflon

Dimensions:320 x 75mm

Shape sizes can be designed to meet customer requirements

Candy Tray

Size:595 x 295 x 40mm

Inside size:575 x 280 x 29.5mm

Stainless steel trolley

Material:304 stainless steel

Number of layers:16 floors, 2 discs per floor

Weight:40kg

Dimensions:800 x 600 x 1660

Polishing pot

Packweight:45-90kg/min

Size:1000mm (Outer circle maximum diameter)

Speed:30-32 /

Host power:1.5kw

Dimensions:1000 x 1000 x 1600

Soft candy sander

Including:

Motor, poleless governor, sand mixer

Parameters:

Rotating motor power: 0.75kw

Transmission motor power: 0.55kw

Made in 304 stainless steel

Sand mixer form factor:1500 x 1300 x 1350

Dehumidifier

KA-25.0C

Parameters

Model KA-25.0C

Dehumidification 20kg/h.

Cooling capacity 31.1kw

Dimensions: 1750 x 690 x 800

Circulating cold water tower

(Includes water pump)

Water treatment:20 tons

Motor:1.1kw

Pumps:1.5kw
