Type: | CG5 | CG9 | CG12 |
Eectric power: | 4kw | 4.5kw | 6kw |
Dimensions: | 1200*800*600mm | 1400*800*620mm | 1600*800*620mm |

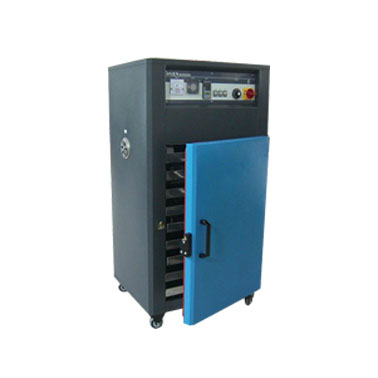

Brief Introduction:
This drying machine is widely used for drying many kinds of food such as vegetables, fruits, seafood.
Box type dryer is suitable for all kinds of polymer materials, drying, and drying different materials at the same time, apply a small amount of very much, the diversity of raw material or the use of test, also can be used in electronics, electrical machinery, electroplating, painting, printing and other related products of preheating and drying process.
Feature:
Adopt precision P.I.D. electronic temperature control, to achieve the drying effect of the uniform.
Heat-sealed door to maintain consistent temperature and minimize heat loss.
Stainless steel pan and bladder, can prevent pollution in the process of drying materials.
Optimization design, convenient maintenance.
Air intake vent and exhaust outlet are adjustable design, easy to adjust the air volume.
Configuration over-temperature protection device, can avoid over-temperature and dry.
Configuration motor overload protection.
24 hours timer device, easy to operate.
Technical Data:
Model |
CG5 |
CG9 |
CG12 |
CG20 |
Capacity |
25-30kg/batch |
45kg/batch,3-4 hours/batch |
60kg/batch |
100kg/batch |
Voltage |
380V/50Hz (can be changed) |
380V/50hz(can change) |
380V/50hz(can change) |
380/50hz |
Eectric power |
4kw |
4.5kw |
6kw |
9kw |
Drying tray |
5pcs |
9pcs |
12pcs |
20pc |
Dimensions |
1200*800*600mm |
1400*800*620mm |
1600*800*620mm |
1740*1050*2000mm |
Weight |
148kg |
178kg |
285kg |
450kg |
