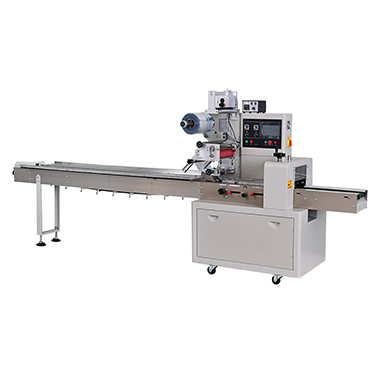

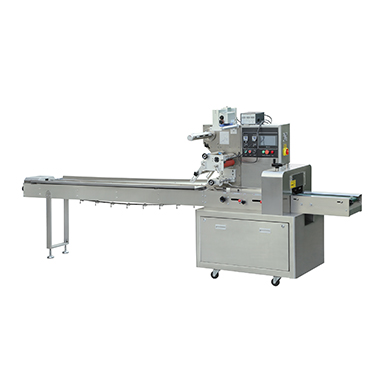

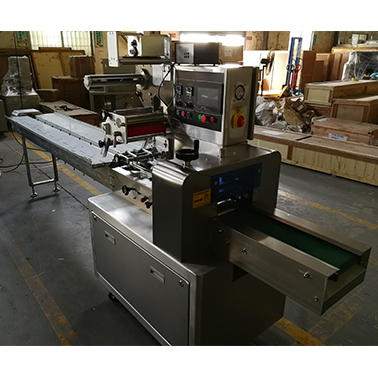

Rotary pillow packing machine

Type: ALD -250B ALD -320B ALD-350B
Product height: Max.40mm Max.40mm Max.45mm
Power: 220V,50/60HZ,2.4kw 220V,50/60HZ,2.6kw 220V,50/60HZ,2.6kw
Send E-mail Consult Now
Share with:

Brief Introduction:

Applicable to food, hardware accessories, medical supplies, daily necessities, stationery, toys, hotel supplies, electronic products and other industries with regular objects packaging.


Feature:


  •  Double motor, Panasonic inverter and PLC control, the bag length is set to cut, no need to adjust the air, one step in place, saving time and film.
  • Man-machine interface, parameter setting is convenient and fast
  •  Fault self-diagnosis function, fault display at a glance
  • High-sensitivity photoelectric color tracking, digital input sealing and cutting position, making the sealing and cutting position more accurate
  • Temperature independent PID control, better suited to various packaging materials
  • Positioning stop function, no sticking knife, no waste envelope
  • The traditional system is simple, the work is more reliable, and the maintenance is more convenient.
  • All control is realized by software, which is convenient for function adjustment and technology upgrade


  • Optional device
    :



    Coder                                                        Punch machine                                                       All stainless steel

    Touch screen                                             Inflator                                                                    Exhaust device

     No material shutdown function                customer custom seal pattern or seal                      Automatic feeding device

Technical Data:

Model

ALD-250B

ALD-250D

ALD-250E

ALD-250S

Film width

Max.250mm

Max.180mm



Bag length

65~190mm

90~220mm



45~110mm

120~280mm

150~330mm

Bag width

30~110mm

55~110mm

45~110mm

Product height

Max.40mm

Max.55mm

Max.35mm

Film roll diameter

Max.320mm

320mm

Speed/capacity

40~230 package/Minute

60~330 package/Minute

Power

220V,50/60HZ,2.4kw

220V,50/60HZ,2.4kw

Machine Dimension

(L)3370*(W)670*(H)1450mm

(L)3370*(W)670*(H)1450mm

Machine Weight

about 600Kg

about 600Kg



Model

ALD -320B

ALD-320D

ALD-350B

ALD-350D

Film width

Max.320mm

Max.350mm



Bag length

65~190mm

120~280mm

65~190mm

90~280mm

120~260mm

150~330mm

90~260mm

150~330mm

Bag width

50~160mm

50~160mm

Product height

Max.40mm

Max.55mm

Max.45mm

Max460mm

Film roll diameter

Max.320mm

Max.320mm

Speed/capacity

40~230 package/Minute

40~230 package/Minute

Power

220V,50/60HZ,2.6kw

220V,50/60HZ,2.6kw

Machine Dimension

(L)3370*(W)720*(H)1450mm

(L)4020*(W)745*(H)1450mm

Machine Weight

about 600Kg

about 650Kg
